2TON front end loader,926 wheel loader sale in Jamaica
- modelo
- sw940
propiedad
- Type:
- Front Loader
- Moving Type:
- Wheel Loader
- Dimension(Long * Breadth * High):
- 6000X1200X2850MM
- Machine Weight:
- 5800 kg
- Hydraulic Pump Brand:
- dehong
- Machine Weight:
- 5800 kg
- Operating weight:
- 6200kg
Evaluacion
Descripción
- Características del producto
- Detailed Images
- Our company
Description:
Small Loader is one kind of earthwork construction machinery for construction project such as road, railway, construction, building, hydroelectricity, port and mining.,etc. Mainly applied to load and unload the bulk materials like soil, sandstone, lime, coal as well as light digging for the ore and hard soil.
It can achieve the bulldozing, lifting, loading and unloading operation for other materials(eg.,wood) with different auxiliaries.
Advantages:
1. Executive standard: customer's requirements. Above information serves as a reference only, we can change the parameters reasonably according to your request.
2. Optional parts: snow plow, pallet fork, gripper, rock/coal bucket, portal frame, side dump bucket, clamp bucket, light material bucket, joystick, air condition, back up camera etc.
3. Warranty: 12 months after delivery, necessary spare parts presented free. After warranty, we can always provide spare parts according to customer's wishes.
Características del producto:
|
Performance
|
Rated loading
|
2800 kg
|
|
|
Overall weight
|
6500 kg
|
||
|
Bucket capacity
|
1.5 m3
|
||
|
Maximum traction force
|
3450 kgf
|
||
|
Maximum breakout force
|
62 KN
|
||
|
Maximum grade ability
|
30°
|
||
|
Maximum dump height
|
3500 mm
|
||
|
Maximum dump reach
|
1150 mm
|
||
|
Overall dimension
|
6350*2100*2990 mm
|
||
|
Minimum turning radius
|
5700 mm
|
||
|
Engine
|
Model
|
Yunnei 4108 turbocharged
|
|
|
Type
|
Vertical , in-line, water cooled, 4-stroke diesel engine
|
||
|
Rated power
|
92kw—2400r/min
|
||
|
Min. fuel-consume ratio
|
232 g/kw.h
|
||
|
Transmission system
|
Gearbox mode
|
Power shaft normally engaged straight gear
|
|
|
Gears
|
2forward, 2 reverse
|
||
|
Maximum speed
|
40km/h
|
||
|
Main reducing spiral
|
Bevel gear grade 1reduction
|
||
Drive axles |
Decelerating mode
|
Planetary reduction grade 1
|
|
|
Wheel base (mm)
|
2400 mm
|
||
|
Wheel tread
|
1440 mm
|
||
|
Ground clearance
|
310
|
||
|
System working pressure
|
16 MPa
|
||
Hydraulic system |
Boom lifting time
|
4.8 s
|
|
|
Total time
|
10.5s
|
||
|
Service brake
|
Air-on-oil, caliper disc brake system on 4 wheels
|
||
|
Brake system
|
Parking brake
|
soft-axle controller, drum brake
|
|
|
Tyre
|
size
|
16/70-24
|
|

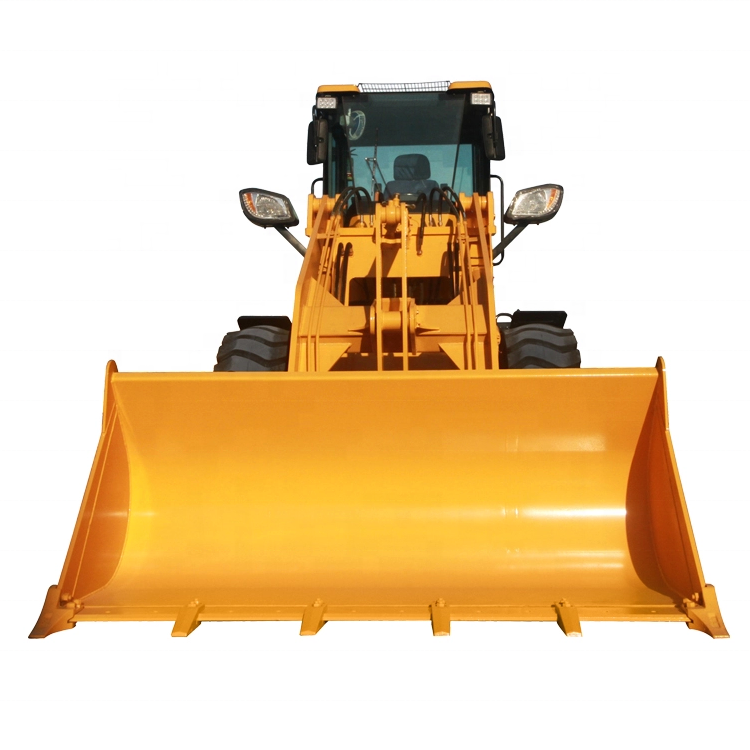

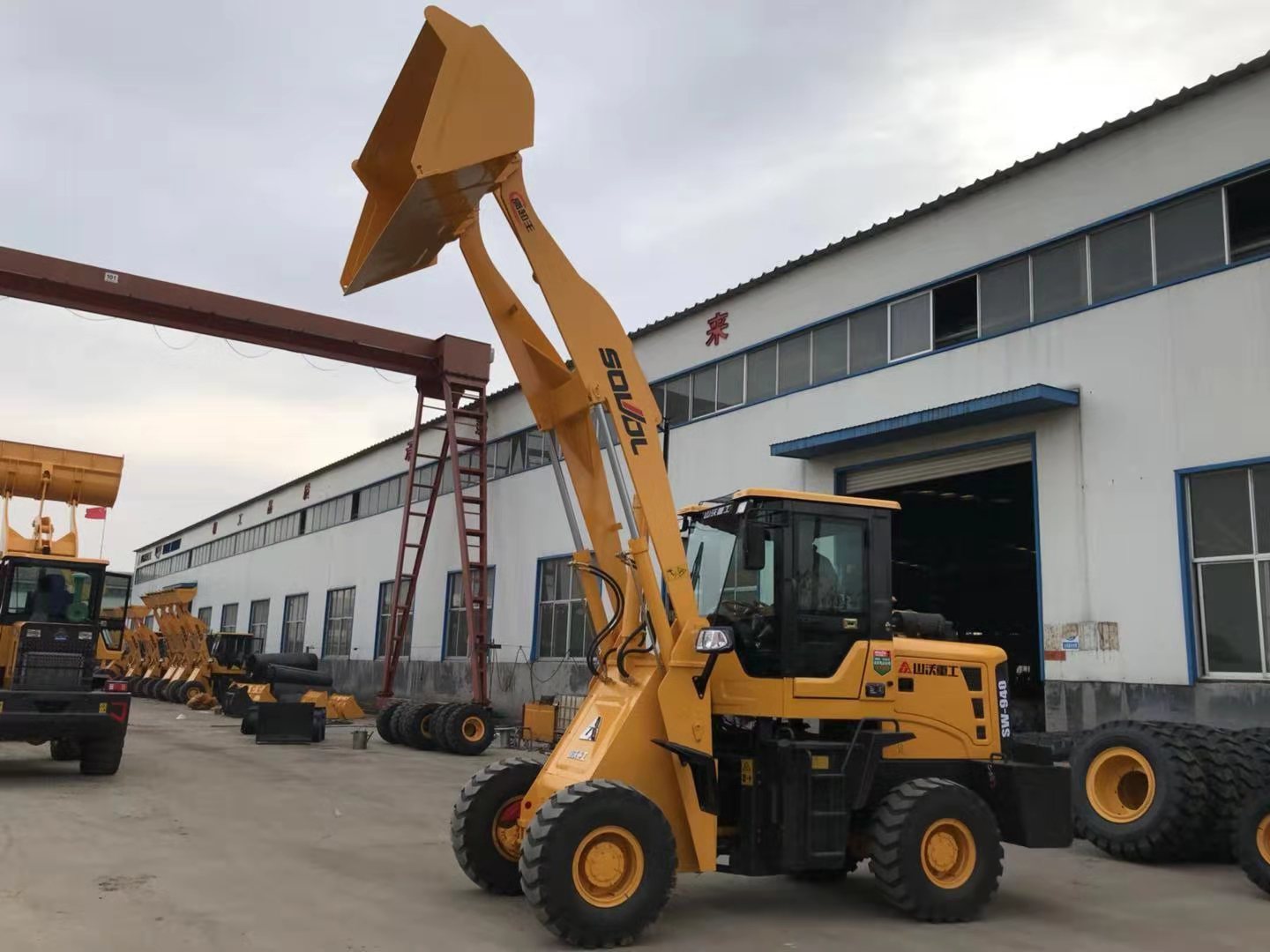

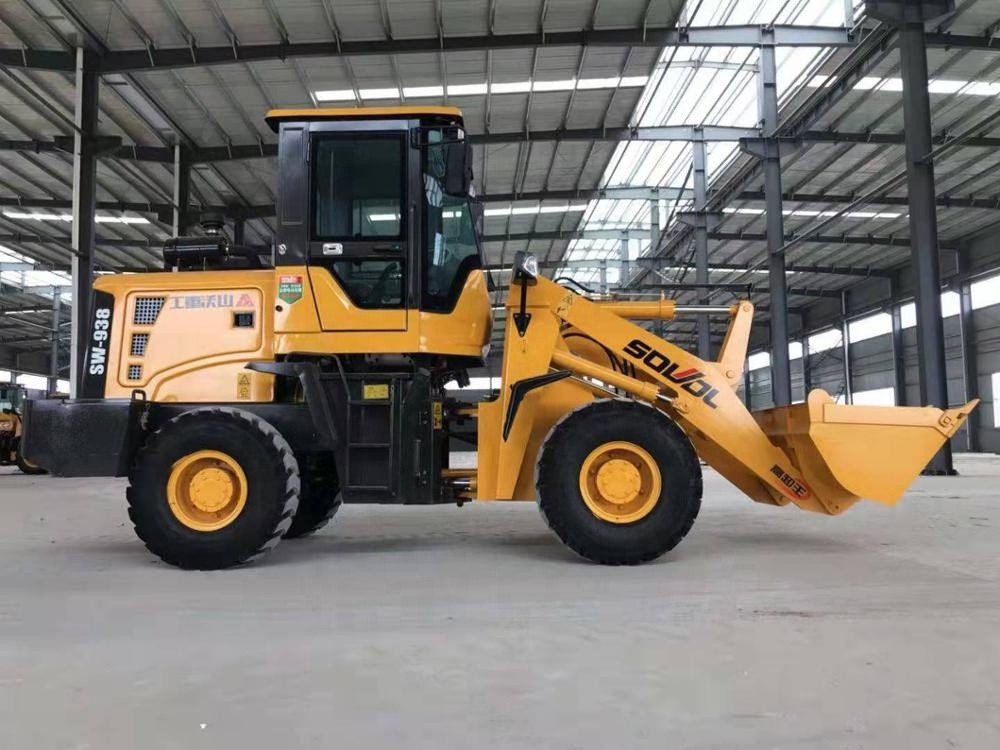

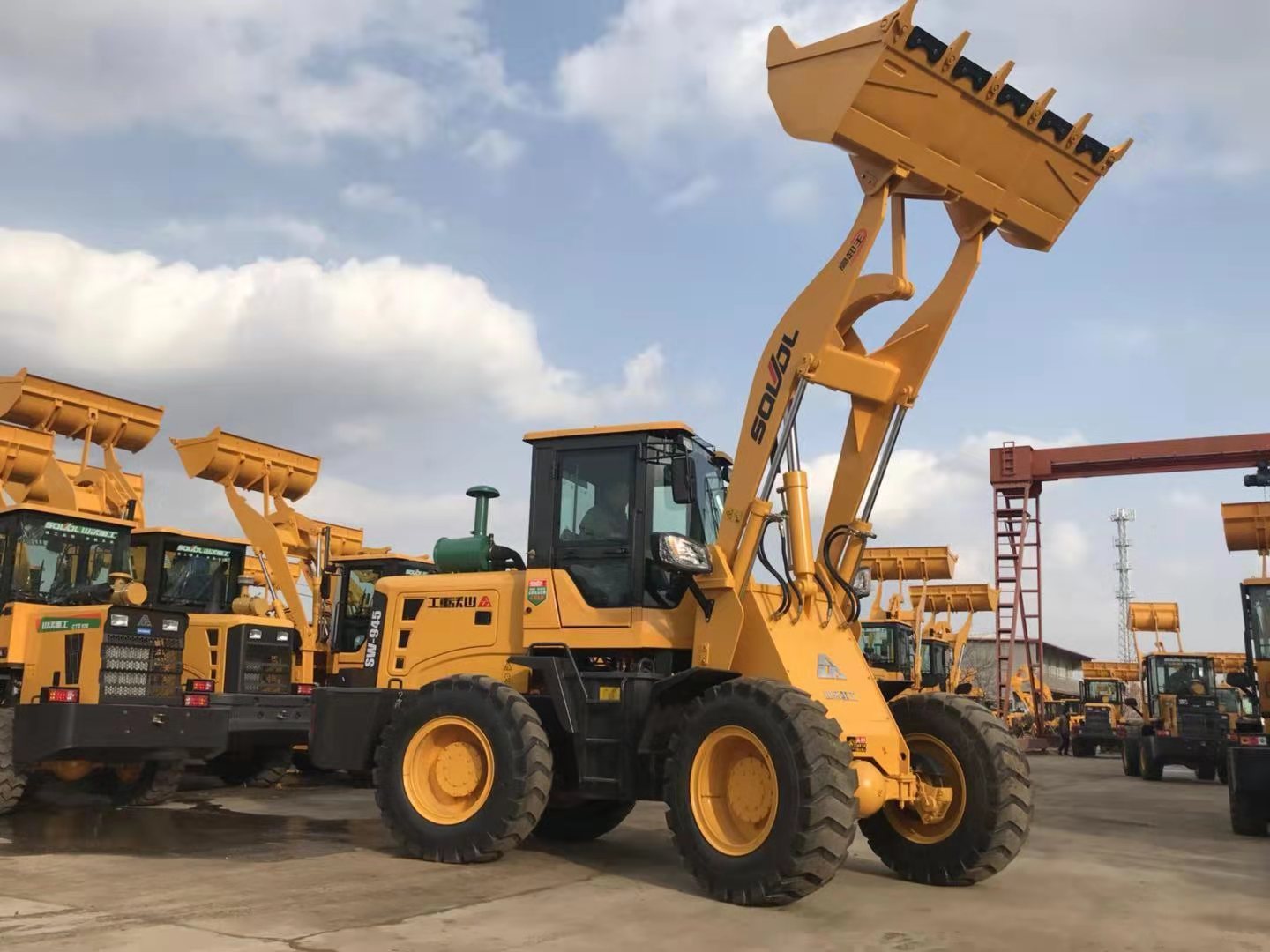

Detailed Images
Our Services
12months Quality warranty period
Provide technical guide forever.
After Quality Warranty period, will provide the spare parts with cost price.
All the machines provided by our factory will be tested before ship.
